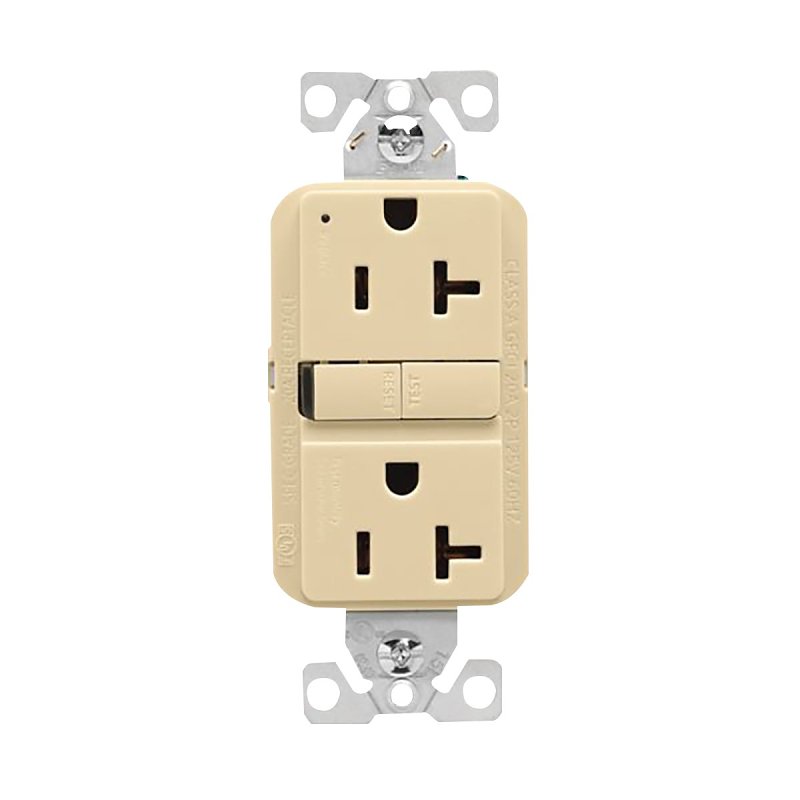

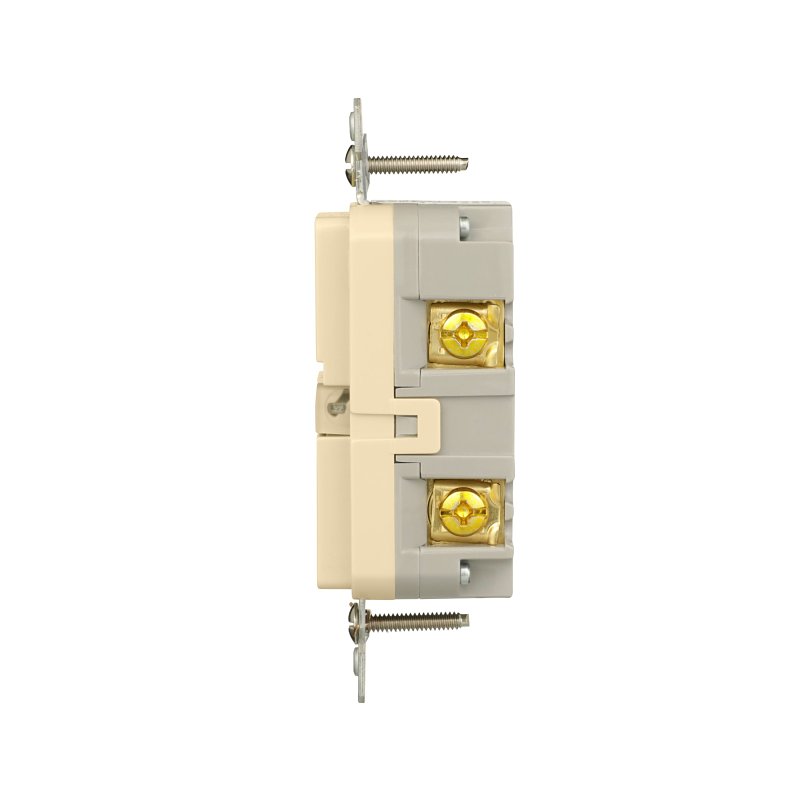

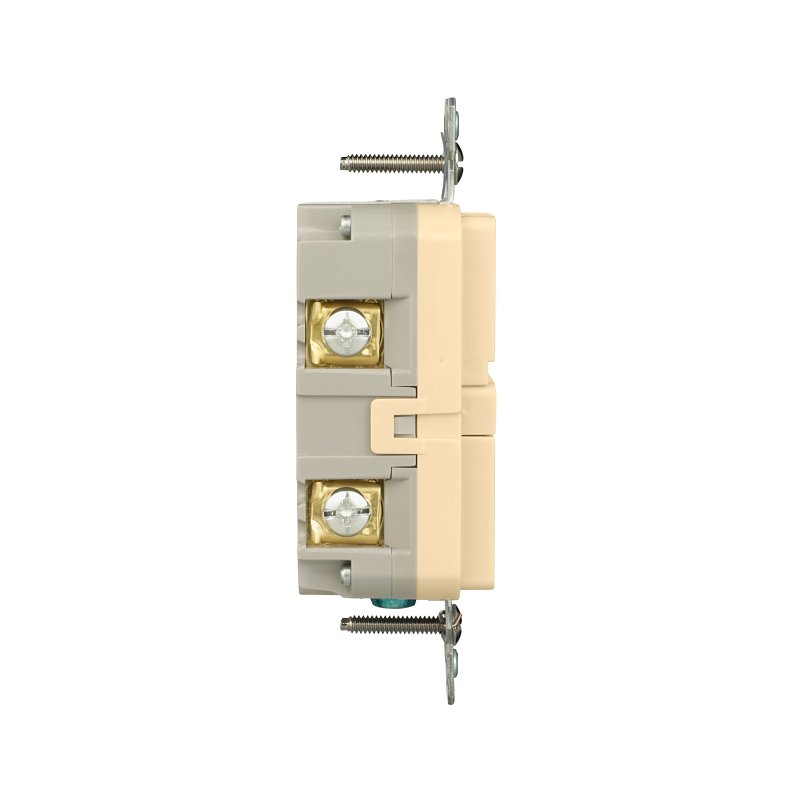

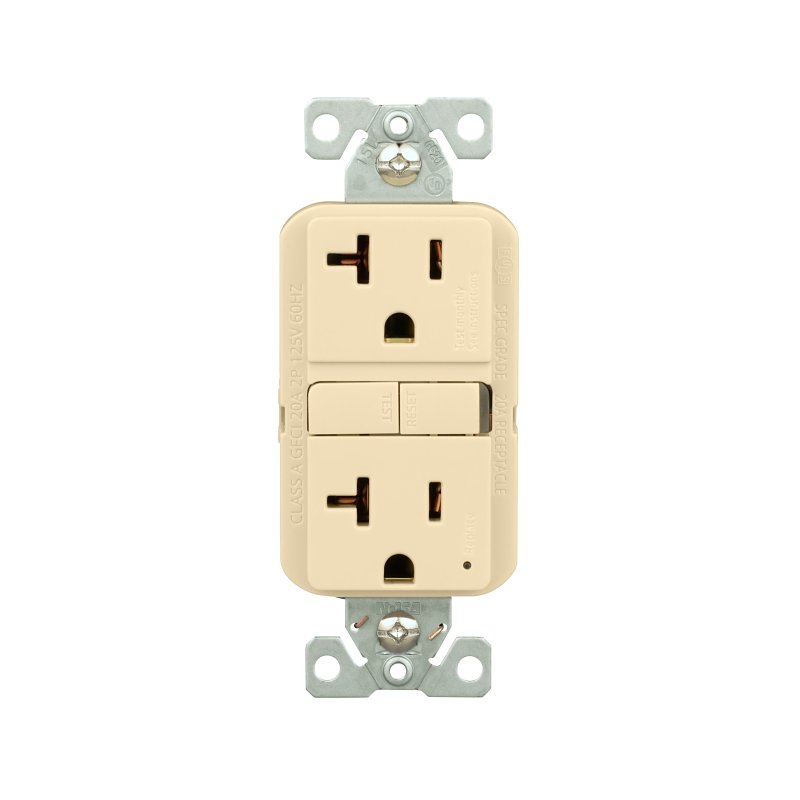

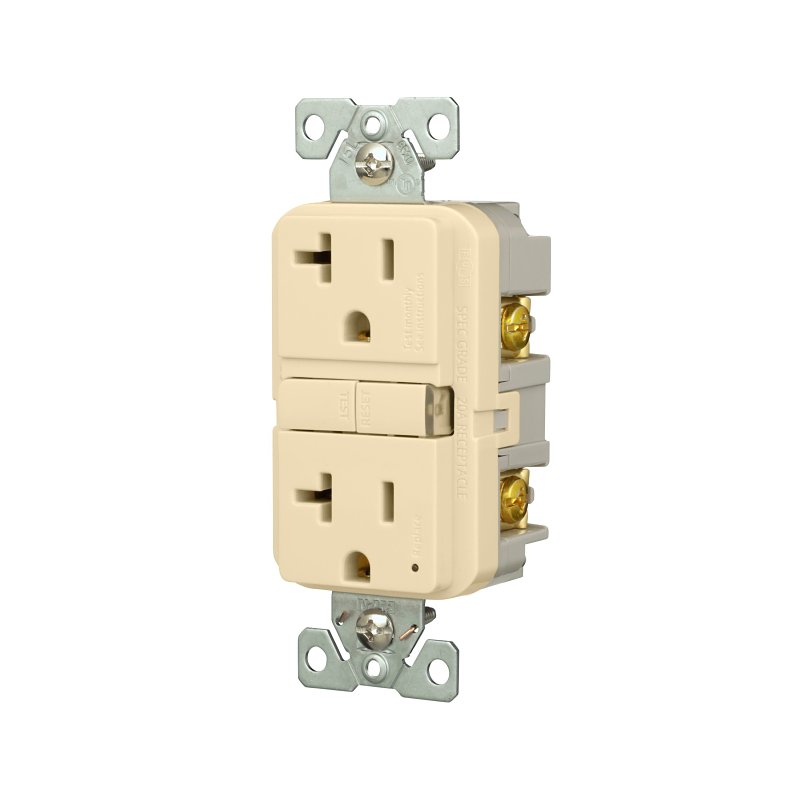

Eaton GF20V-BX-L GFCI Receptacle, 125 V, 20 A, NEMA: NEMA 5-20R, Back, Side Wiring, Ivory

Eaton

Eaton GF20V-BX-L GFCI Receptacle, 125 V, 20 A, NEMA: NEMA 5-20R, Back, Side Wiring, Ivory

$19.99$19.99
Eaton GF20V-BX-L GFCI Receptacle, 125 V, 20 A, NEMA: NEMA 5-20R, Back, Side Wiring, Ivory
  • Color: Ivory
  • Current Rating: 20 A
  • Dimensions: 4.19 in H x 1.69 in W
  • Grounding Type: Automatic
  • Material: Polycarbonate/Steel/Thermoplastic/PVC
  • Model #: GF20V-BX-L
  • UPC #: 032664007903
  • SKU: 7491897

Your shopping list will be used for pickup in-store

Product Details

Eaton GFCI Receptacle, Self-Test, 125 V, 20 A, 2 Pole, 10 kA Short Circuit, Grounding Type: Automatic, 3 Wires, 14 to 10 AWG Wire, Back, Side Wiring, NEMA 5-20R NEMA Rating, -35 to 66 deg C Operating, Polycarbonate/Steel/Thermoplastic/PVC, Ivory, Dimensions: 4.19 in H x 1.69 in W

Key Features

  • Slimmer design for easy installation, leaving more room for wires in the box
  • Automatically self-tests periodically to ensure GFCI protection
  • GFCIs incorporate lock out functionality to protect against mis-wired line-load connections and GFCI circuitry damage
  • Wider button wells for easy test and reset
  • Intuitive LED status indicators for trip and end of life states
  • Clean, modern industrial design with reduced top housing markings and neutral text direction on buttons
  • Meets and exceeds 10 kA short circuit testing and underwriters laboratories
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • External backwire clamps provide visual confirmation of secure termination
  • Line side terminals are backed out and staked for fast installation

Item Specifications

ColorIvory
Current Rating20 A
Dimensions4.19 in H x 1.69 in W
Grounding TypeAutomatic
MaterialPolycarbonate/Steel/Thermoplastic/PVC
Nema RatingNEMA 5-20R
Number of Poles2
Number Of Wires3
Operating Temperature-35 to 66 deg C
Short Circuit Current Rating10 kA
TypeSelf-Test
Voltage Rating125 V
Wire Size14 to 10 AWG
Wiring TypeBack Side
